To set up our Cypress E2E test environment use the AppBuilder Installer to setup a development environment. Note the additional steps for testing section.

Scripts

Use npm test to start the docker test stack and run the tests in a headless browser. The docker stack will remain up so you rerun the tests using npm test.

Use npm run cypress:open to open the Cypress Test Runner. This allows you to run a test and watch it. This is recommended when writing or debugging a test. This requires the docker test stack to be running. Use npm test or npm run test:boot first.

Use npm run test:down to remove the docker test stack.

Folder Structure

New tests can be added to test\e2e\cypress\integration. See writing tests.

Reference

Test Ports

Port	Container
8088	AppBuilder
8889	Database

Intro to writing tests

These two commands are always running in the background while you write tests:

$npm run test:boot

$npm run cypress:open

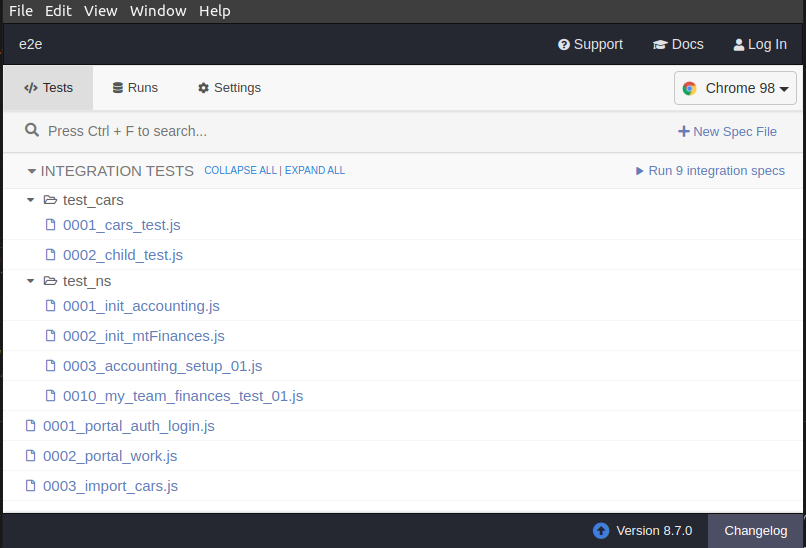

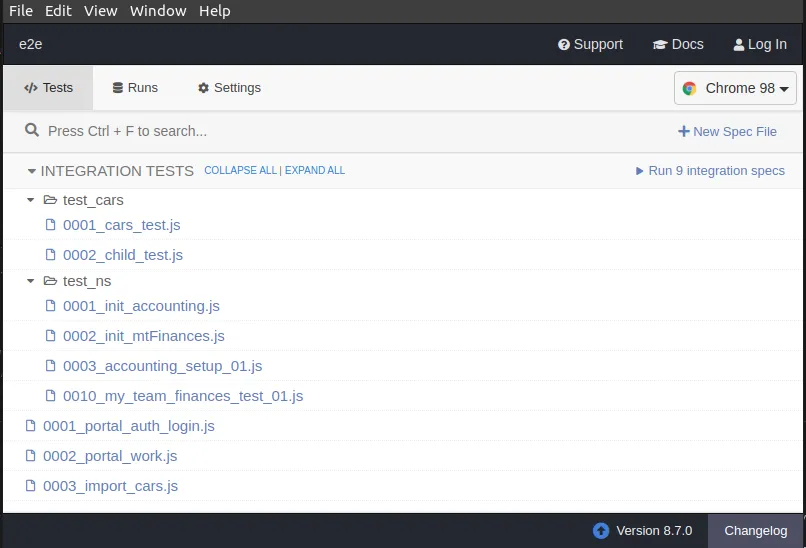

Cypress open will give you this window where you can run any test in /integration:

There are two places you will spend your time working:

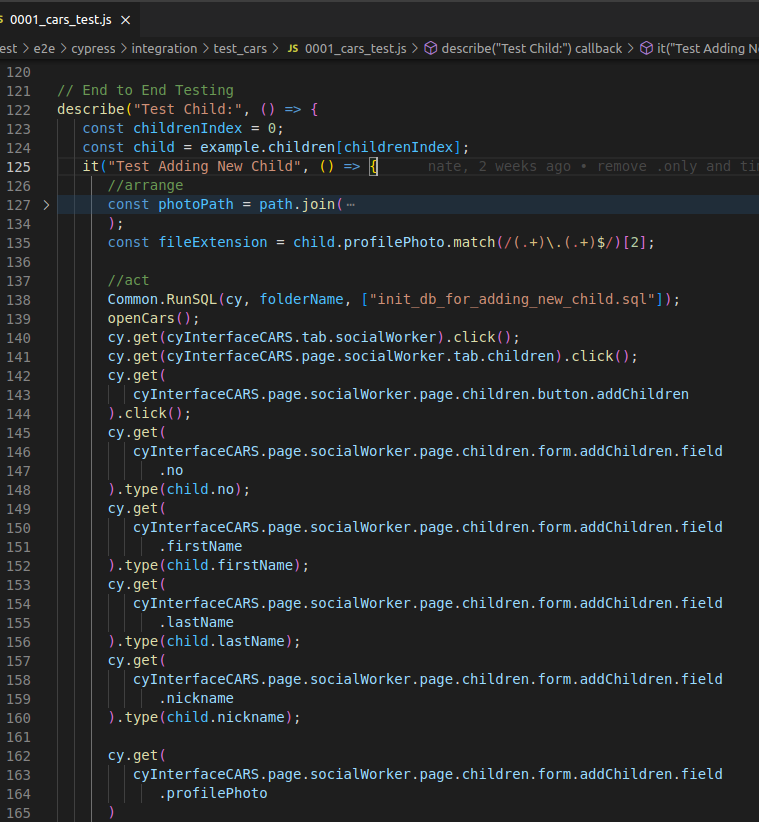

The logic: what buttons are clicked, typed in, and checked to see if data saved properly

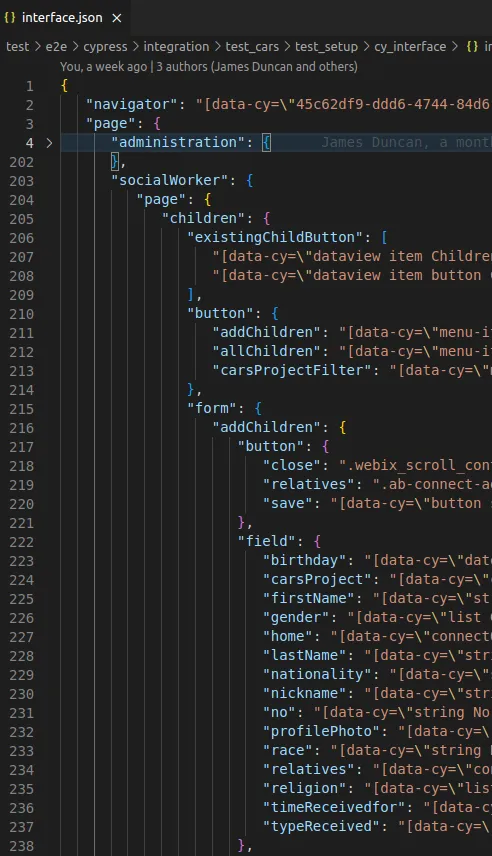

The interface: this JSON is what is accessed by the ‘cyInterfaceCARS’ in the logic.

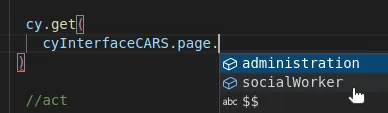

(VScode will prompt you with a variable on the logic side if it exists in the structure)
