Overview

! This is wip and a draft, how this works may change !

  • Create files for new plugin
  • npm install and compile plugin (TODO is this for sure needed?)
  • Ensure directory is in docker (TODO this should not be nessicary long term)
  • Add plugin in site administration

Creating plugin

get the latest cli tool

npm install -g CruGlobal/ab-cli

Ensure you have the CLI tool installed (see…)

appbuilder plugin view

If you execute appbuilder plugin it will detail your options… For example appbuilder plugin new will create an empty plugin, while view sets up boilerplate.

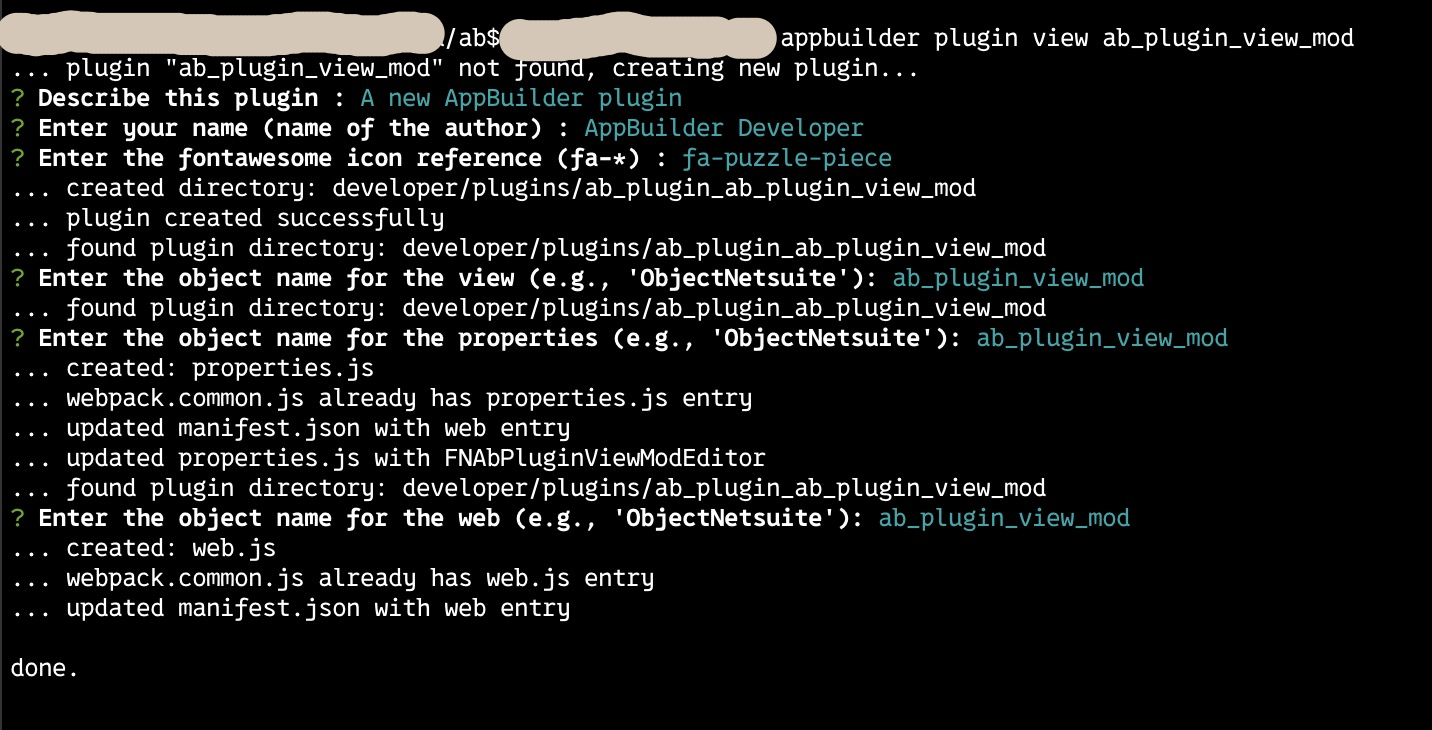

cli_init

This will create a new directory in your project: ab/develop/plugins file_list

Migrate

appbuilder plugin migrate view [] [ABView] command
# like
appbuilder plugin migrate view [someTempName] ABViewList

Make sure you setup any submodules in that directory

npm i
npm run watch

If there are errors, check the webpack files!

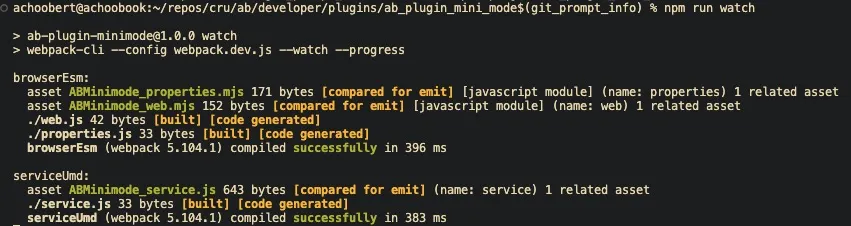

If there are no errors it should look similar to this: alt_text

Possible sources of errors

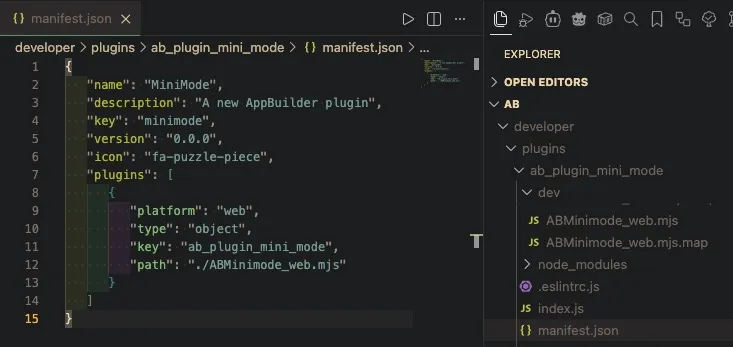

You will find a manifest.json in your new plugin. Make sure it references files that actually exist! alt_text

Adding To Docker

The files exist on your local machine, but not within docker! Make sure your docker-compose.dev.yml contains this:

services:
   web:
      image: docker.io/digiserve/ab-web:$AB_WEB_VERSION
      hostname: web
      volumes:
         - type: bind
           source: ./nginx/html
           target: /usr/share/nginx/html
         - files:/data
         - type: bind
           source: ./developer/web/assets
           target: /app/assets
         # This is where we load the plugins directory!!!
         - type: bind
           source: ./developer/plugins
           target: /app/assets/ab_plugins
      depends_on:
         - api_sails

Loading the Plugin

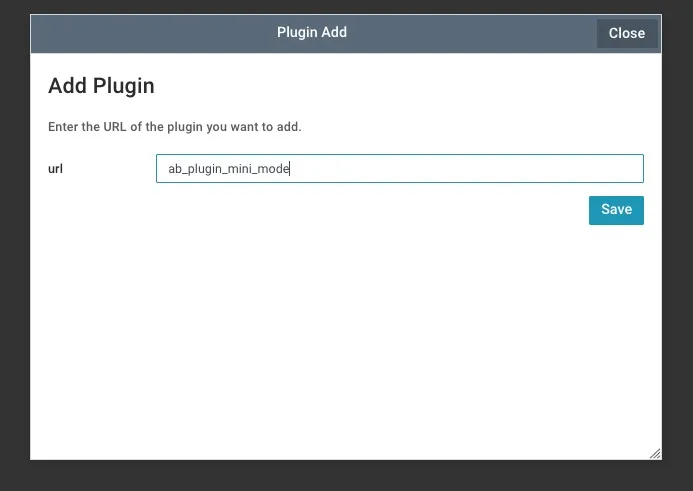

The plugin code is in docker, but it isn’t getting loaded yet! We need to go to site administration/Plugins and + Add it. alt_text

Note that you can edit the widgets in `Site Administration and

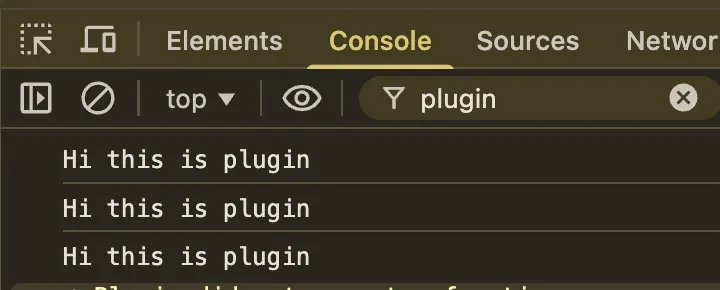

console_logs alt_text

After refreshing the page, the plugin will be active. I had a simple console log:

alt_text

Merging

remove from here https://github.com/CruGlobal/plugin_ABDesigner/

edit functionality goes here https://github.com/CruGlobal/plugin_ABDesigner/tree/master/src/plugins

remove from here https://github.com/CruGlobal/appbuilder_class_core

remove from here and https://github.com/CruGlobal/ab_platform_web/ add here https://github.com/CruGlobal/ab_platform_web/tree/master/AppBuilder/platform/plugins

the tricky thing about making updates to ab_platform_web when what you currently have also depends on changes to the core code, is that you also have to make ab_platform_web’s core point to the branch you updated on core. so you need to update this PR to also include core#new/plugin_x and that should stop the core from trying to reference these files you just removed. make sure to migrate from ABViewXCore

Advanced

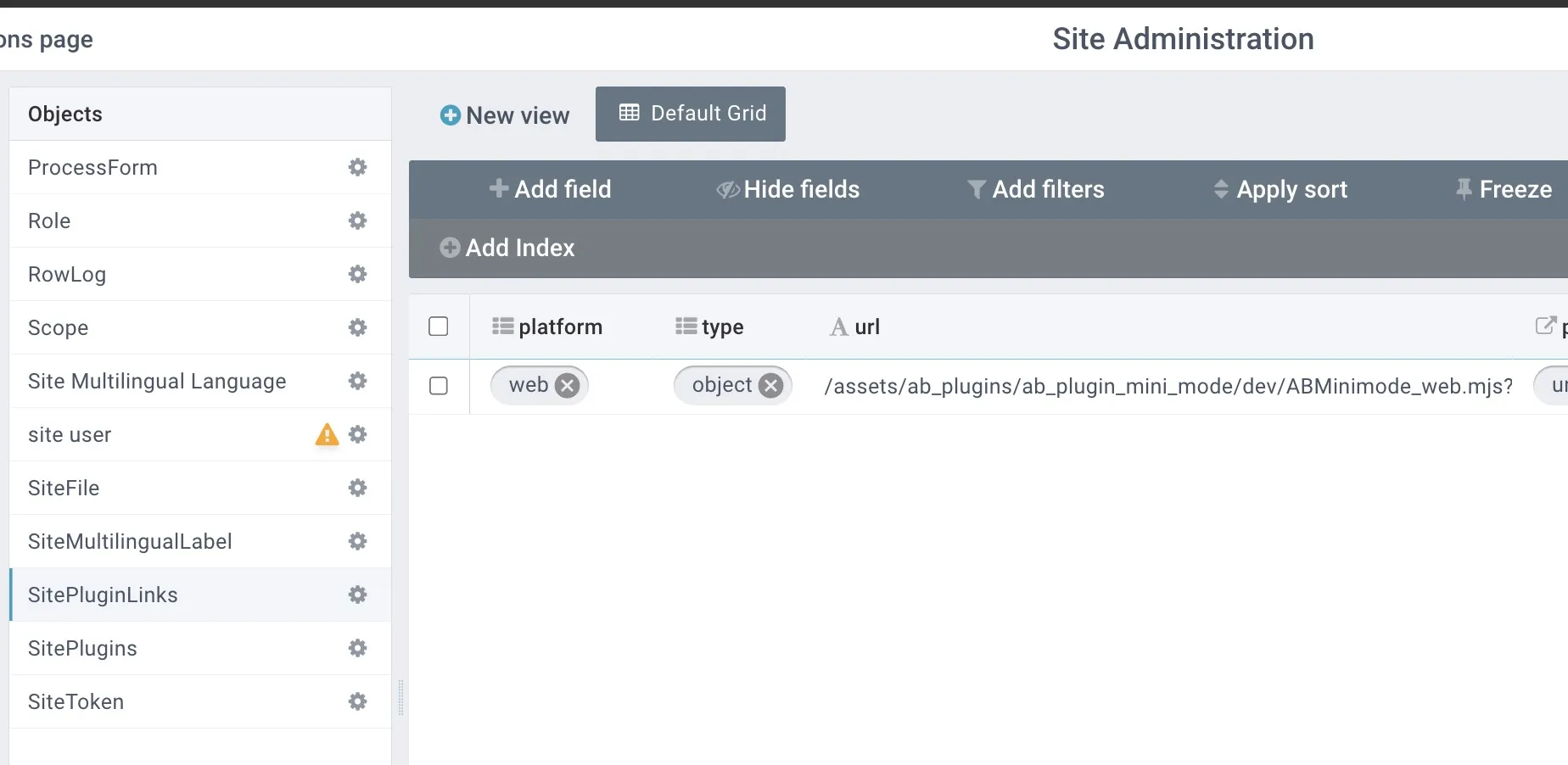

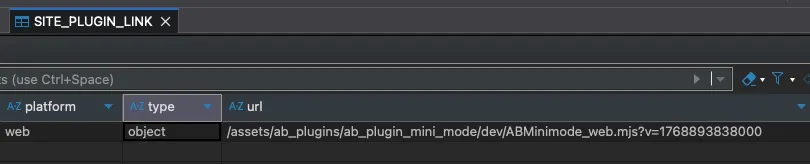

If your appbuilder breaks, you can open the database and remove broken references to plugin files. These are screenshots from a working system. Note how ABMinimode_web.mjs is a file in /dev/. If the file name was, say, ABMinimode_web.js your appbuilder would fail to load!

alt_text alt_text
